Wheels and Drives
The wheels and drivetrain system are fundamental to a mobile robot, defining its ability to move, maneuver, and interact with its environment. The choice of wheels and the drivetrain configuration directly impacts the robot's speed, traction, agility, and the types of terrain it can navigate.
3.1 Types of Robot Wheels
Selecting the right type of wheel is crucial and depends on the robot's application, the surfaces it will operate on, and the desired movement capabilities.

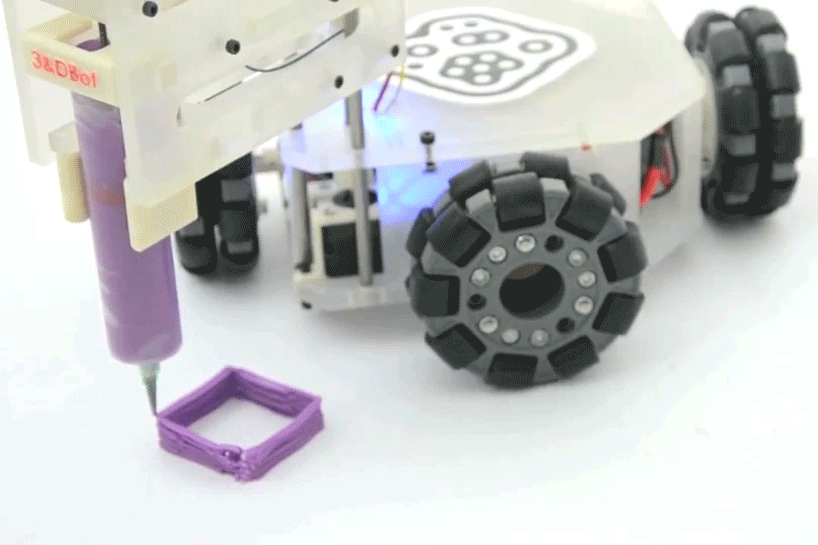

3.1.1 Omni Wheels
Description: Omni wheels (or poly wheels) are distinctive wheels with a series of small rollers (discs) mounted around their circumference. These rollers are oriented perpendicular to the wheel's main axis of rotation. This unique design allows the wheel to be driven with full force in the forward/backward direction (like a conventional wheel) but also to slide laterally with very little friction, thanks to the free-spinning rollers.
Construction: Typically consist of a central hub (plastic or metal) with multiple passive rollers attached around the periphery. The rollers themselves may be made of plastic or have a rubberized coating for better grip. Omni wheels can be "single" (one row of rollers) or "double" (two offset rows of rollers, providing a smoother ride).
Principle of Operation: When driven, the wheel applies force tangentially. However, any force applied perpendicular to the driving direction (sideways) causes the rollers to spin, allowing easy lateral motion.
Advantages:
Enables holonomic movement (movement in any direction without changing orientation) when used in specific drivetrain configurations (e.g., three or four omni wheels).
Allows for precise maneuvering in tight spaces.
Disadvantages:
Generally offer less traction in the primary driving direction compared to standard rubber wheels.
Can struggle on very uneven terrain or with obstacles, as individual rollers may lose contact or get stuck.
Can be more expensive than conventional wheels.
Vibrations can be an issue, especially with single omni wheels on hard surfaces.
Common Applications: Holonomic drive systems for competitive robotics (e.g., RoboCup, FIRST Robotics Competition), mobile research platforms, automated guided vehicles (AGVs).
[Image: A single omni wheel, a double omni wheel, and a close-up of the rollers.]
[Product Link: Search for "omni wheels robotics" or "poly wheels" on supplier websites like AndyMark, Pololu, ServoCity, Nexus Robot, or VEX Robotics.]

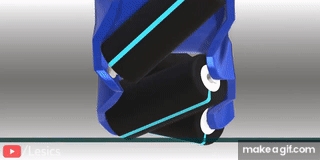

3.1.2 Mecanum Wheels
Description: The Mecanum wheel is an advanced wheel design that enables a vehicle to move in any direction (holonomically). Invented by Bengt Ilon of the Swedish company Mecanum AB, it's a conventional wheel with a series of rollers attached to its circumference. These rollers typically each have an axis of rotation at a 45° angle to the plane of the wheel and at 45° to a line through the center of the roller parallel to the axis of rotation of the wheel.
Construction: Mecanum wheels come in left-handed and right-handed versions, which must be mounted in a specific configuration on a robot (typically an 'X' or 'O' pattern when viewed from above). The rollers are usually barrel-shaped and made of polyurethane or rubber for good grip.
Principle of Operation: By varying the speed and direction of rotation of each individual Mecanum wheel, the forces generated by the angled rollers combine to produce a net force vector in any desired planar direction (forward/backward, sideways, diagonally) and allow rotation of the robot around its center, all without needing a conventional steering system.
Advantages:
Full holonomic movement, offering exceptional maneuverability.
Robot can translate and rotate simultaneously.
Disadvantages:
Requires a flat, even surface for optimal performance, as all wheels must maintain contact with the ground.
More complex to control than differential drive systems; requires precise motor control for each wheel.
Can be expensive and heavier than other wheel types.
Susceptible to slippage if one wheel loses traction.
Can be less efficient in direct forward motion compared to standard wheels.
Common Applications: Warehouse logistics robots, advanced mobile platforms, forklifts, wheelchairs, competitive robotics.
[Image: A single Mecanum wheel showing the 45-degree angled rollers, and a set of four (two left-handed, two right-handed) illustrating typical placement.]
[Product Link: Search for "Mecanum wheels" on supplier websites like AndyMark, Nexus Robot, RobotShop, or goBILDA.]
3.1.3 Standard / Conventional Wheels
Description: These are the most common type of wheels, providing traction for forward and backward movement. They do not inherently allow for sideways motion and require either a steering mechanism or a differential drive configuration to change the robot's direction. The term "Differential Wheels" in the original text likely referred to these standard wheels when used in a differential drive setup.
Construction: Can range from simple plastic discs to robust rubber tires mounted on hubs. Materials include plastic, nylon, aluminum (for hubs), and rubber or polyurethane (for tires/treads).
Types:
Solid Rubber/Plastic Wheels: Durable, simple, good for smooth surfaces.
Wheels with Rubber Treads: Offer improved traction on various surfaces.
High-Traction Wheels: Often feature specialized rubber compounds (e.g., nitrile rubber) or tread patterns for maximum grip.
Advantages:
Simple, robust, and often inexpensive.
Generally provide good traction, especially with rubber tires.
High efficiency for direct forward/backward movement.
Disadvantages:
Do not allow for sideways movement (non-holonomic).
Turning requires either skidding (in differential/tank drive) or a separate steering mechanism.
Common Applications: Widely used in a vast range of robots, from simple toy robots and line followers to rovers and industrial transport robots.
[Image: An assortment of standard robot wheels: e.g., a plastic wheel with rubber tire, a high-traction rubber wheel, a simple plastic wheel.]
[Product Link: Search for "robot wheels", "RC car wheels", "high-traction robot wheels" on sites like Pololu, SparkFun, Adafruit, Trossen Robotics, or hobbyist stores.]
3.1.4 Castor Wheels
Description: A castor (or caster) is a passive, unpowered wheeled device typically mounted to a larger object to enable relatively easy rolling and swiveling movement. It consists of a wheel housed in a fork or special housing that often allows the wheel to swivel, providing steering support.
Construction: Comprises a wheel (plastic, rubber, nylon, or metal) mounted on an axle, which is in turn held by a fork. The fork connects to a pivot that allows it to swivel freely (for swivel casters).
Types:
Swivel Casters: The wheel can rotate 360 degrees, allowing the robot to turn easily.
Fixed Casters (Rigid Casters): The wheel is locked in a fixed orientation and only allows straight-line motion.
Ball Casters: Use a large spherical ball instead of a traditional wheel, allowing low-friction movement in any direction. Often used for small, lightweight robots.
Advantages:
Provide balance and support for robots, especially in differential drive configurations.
Allow for easy turning when paired with driven wheels.
Relatively inexpensive.
Disadvantages:
Can get stuck on obstacles or uneven terrain.
May introduce "caster flutter" or wobble at higher speeds or if of poor quality.
Ball casters may accumulate debris and require cleaning.
Common Applications: Used as support wheels on two-wheel differential drive robots, on carts, furniture, and various mobile equipment. Ball casters are common on small educational robots.

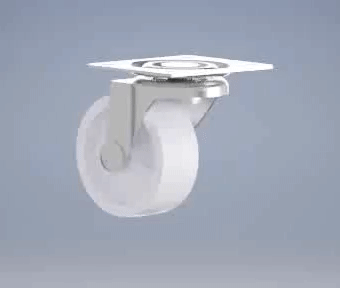

[Image: A typical swivel castor wheel and a ball castor.]
[Product Link: Search for "castor wheels", "swivel casters", "ball casters" on hardware supplier websites, robotics stores like RobotShop, or industrial suppliers like McMaster-Carr.]
3.1.5 Compliant Wheels
Description: Compliant wheels are designed to deform or "comply" when they encounter an object or uneven terrain. They are often made from flexible materials or have a unique spoke structure that allows them to absorb impacts and maintain grip.
Construction: Typically made from flexible plastics like polyurethane or have a spoked design (e.g., "star" wheels or "flex" wheels) that allows the spokes or the wheel itself to bend.
Advantages:
Excellent grip on irregular objects (useful for intake mechanisms).
Can absorb shocks and vibrations.
Can improve traction on uneven or soft surfaces by conforming to them.
Disadvantages:
May not be suitable for high-precision movements due to their compliance.
Can wear out faster than rigid wheels under high loads or friction.
May have higher rolling resistance.
Common Applications: Object intake systems in competitive robotics (e.g., picking up balls or discs), robots navigating rough terrain, providing suspension-like effects.
[Image: Examples of compliant wheels, such as a "star" wheel or a flexible spoked wheel.]
[Product Link: Search for "compliant wheels robotics", "flex wheels" on sites like AndyMark, VEX Robotics, or goBILDA.]
3.1.6 Pneumatic Wheels
Description: Pneumatic wheels are wheels that use an inflatable tire filled with air, similar to bicycle or car tires. They consist of a hub, an inner tube (usually), and an outer rubber tire.
Construction: Metal or plastic hub with a rubber tire that holds air pressure.
Advantages:
Excellent shock absorption, providing a smooth ride on rough or uneven terrain.
Good traction, especially on loose surfaces like grass, gravel, or sand.
Can handle heavier loads compared to solid wheels of the same size.
Disadvantages:
Susceptible to punctures.
Require air pressure maintenance.
Generally larger, heavier, and more expensive than solid wheels.
Can have more "bounce," which might be undesirable for some applications.
Common Applications: Outdoor robots, all-terrain vehicles, agricultural robots, larger service robots, or any application requiring movement over bumpy surfaces.
[Image: A small pneumatic wheel suitable for robotics, showing the tire and hub.]
[Product Link: Search for "pneumatic robot wheels", "small pneumatic tires" on robotics suppliers, RC hobby stores, or small vehicle parts suppliers.]
3.2 Robotic Drivetrain Systems
A drivetrain (or drive system) is the combination of motors, wheels, and associated mechanical parts (like gears or belts) that propels a robot. The configuration of these components determines how the robot moves and maneuvers.
3.2.1 Two-Wheel Differential Drive
Description: A differential wheeled robot is a mobile robot whose movement is based on two independently driven wheels placed on a common axis, one on each side of the robot body. It changes its direction by varying the relative rate of rotation of its wheels.
Principle of Movement:
Forward/Backward: Both wheels rotate in the same direction at the same speed.
Turning: One wheel rotates faster than the other, or one rotates forward while the other rotates backward (for turning in place).
Arcing: Both wheels rotate in the same direction but at different speeds.
Balancing: To maintain balance, one or more passive (unpowered) castor wheels or low-friction sliders are typically added at the front and/or rear of the robot.
Advantages:
Mechanically simple and cost-effective.
Highly maneuverable; can turn in place (zero-radius turn).
Relatively simple control algorithms ("tank steer").
Disadvantages:
Not holonomic (cannot move directly sideways).
Performance can be affected by the castor wheels, especially on uneven terrain or during rapid acceleration/deceleration (e.g., tipping, loss of traction on drive wheels).
Common Applications: Most common drivetrain for indoor mobile robots, educational robots, robot vacuums, and many competitive robots.
Two Wheel Differential Drive : YouTube Video Link (Keep existing link)
[Diagram: Top-down schematic of a two-wheel differential drive robot, showing the two driven wheels and one or two castor wheels for balance.]
3.2.2 Skid Steer (Tank) Drive
Description: Skid steer drive, often called tank drive, typically uses four (or more, e.g., six) standard wheels, with all wheels on the left side driven together and all wheels on the right side driven together, independently. Steering is achieved by creating a speed difference between the left and right sides, causing the wheels to skid or slip sideways during turns.
Principle of Movement: Similar to two-wheel differential drive, but with more wheels providing traction and load distribution.
Advantages:
Robust and provides good traction, especially with appropriate wheels and on uneven terrain (if using 4WD or 6WD).
Can handle higher loads and more aggressive maneuvers than a 2-wheel system with casters.
Relatively simple control (tank steer).
Disadvantages:
Turns by skidding, which is inefficient, consumes more power, and causes wear on wheels and surfaces.
Not holonomic.
Can be difficult to turn precisely, especially on high-traction surfaces.
Requires sufficient motor torque to overcome skidding friction.
Common Applications: Outdoor robots, rovers, combat robots, robots requiring high traction and robustness on varied terrain.
[Diagram: Top-down schematic of a four-wheel skid steer (tank) drive robot.]

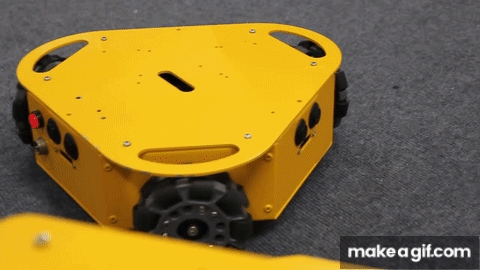

3.2.3 Three-Wheeled Omni Drive (Kiwi Drive)
Description: This holonomic drivetrain uses three omni wheels, typically arranged in a triangular or "Y" formation, often with each wheel 120 degrees apart, or sometimes with two wheels parallel and one perpendicular (as mentioned in the original text, a "Kiwi drive" variant). Each omni wheel is independently driven.
Principle of Movement: By controlling the speed and direction of each of the three omni wheels, the robot can achieve motion in any direction (translation X, Y) and rotation (omega) simultaneously. The forces from each wheel combine vectorially to produce the desired overall motion.
Advantages:
Full holonomic movement.
Statically stable on three points of contact, making it suitable for uneven terrain as all wheels remain in contact.
Can be mechanically simpler and potentially more cost-effective than a four-wheeled omni or Mecanum setup (fewer motors/wheels).
Disadvantages:
Control algorithms are more complex than differential drive, requiring vector calculations to coordinate motor speeds.
Load distribution might be uneven depending on wheel placement and the robot's center of gravity.
The original text's observation that designing a three-wheeled omni robot can be simpler and drive straighter in some instances than a four-wheeled one is a practical note, though performance can vary based on implementation.
Common Applications: Competitive robotics, research platforms requiring high maneuverability.
wheel Omni Drive : YouTube video Link (Keep existing link)
[Diagram: Top-down schematic of a three-wheeled omni drive with wheels at 120-degree spacing (or the Kiwi configuration described).]
3.2.4 Four-Wheeled Omni Drive
Description: This holonomic drivetrain uses four omni wheels, typically mounted at the corners of a square or rectangular chassis. Each wheel is independently driven. The wheels are usually oriented such that their axles are parallel to the sides of the chassis, and their rollers allow perpendicular sliding.
Principle of Movement: Similar to the three-wheeled omni drive, the combined forces from the four independently controlled omni wheels
Standard
Low
High
Medium
Low
Low
Medium-High
Castor
N/A (Passive)
Low
Low
Low
Low
Low
Omni
High (Holo)
Medium
Low-Medium
Medium
Medium
Medium
Mecanum
High (Holo)
Medium-High
Low
High
High
Medium
Compliant
Low-Medium
Medium-High
High
Medium
Low
Low-Medium
Pneumatic
Low
High
Very High
Medium
Low
High
