> For the complete documentation index, see [llms.txt](https://panav.gitbook.io/robotics-handbook/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://panav.gitbook.io/robotics-handbook/slam-and-state-estimation/graph-slam.md). # Graph SLAM ## The insight that changed SLAM Filter SLAM marginalizes out past poses on every step. Once a pose is collapsed into the covariance, you can't go back and revise it. That's why loop closure is so painful in EKF-SLAM - the error you made on pose 100 is permanently baked into your belief about pose 5000. Graph SLAM does the opposite. **Keep every variable explicit; encode every measurement as a constraint between variables; solve the whole thing as a nonlinear least squares.** When you close a loop, you just add one more edge. The optimizer re-distributes error across the graph. Magic. This is the model behind every serious SLAM back-end since about 2010: g2o, GTSAM, Ceres, iSAM2, SE-Sync. Same math, different software. *** ## Factor graphs - the mental model A factor graph (Kschischang, Frey, Loeliger 2001; popularized in robotics by Frank Dellaert and Michael Kaess) is a bipartite graph with two node types: * **Variable nodes** - the things you want to estimate. Poses $$\mathbf{x}\_i$$, landmarks $$\mathbf{l}\_j$$, IMU biases, calibration parameters. * **Factor nodes** - the constraints / measurements. Each factor is a function of a small subset of variables and contributes a term to the global cost. The joint posterior factorizes as: $$ p(\mathbf{X} \mid \mathbf{Z}) \propto \prod\_k \phi\_k(\mathbf{X}\_k) $$ where each $$\phi\_k$$ is one factor (e.g., a relative pose measurement, a landmark observation, an IMU preintegration factor). In log space and assuming Gaussian factors, this becomes the familiar nonlinear least-squares cost: $$ \mathbf{X}^\* = \arg\min\_{\mathbf{X}} \sum\_k | r\_k(\mathbf{X}*k) |^2*{\Sigma\_k} $$ where $$r\_k$$ is the residual of factor $$k$$ (measured minus predicted) and $$| \cdot |\_{\Sigma}^2 = (\cdot)^\top \Sigma^{-1} (\cdot)$$ is the Mahalanobis distance. If you can write your measurement as "predicted minus observed, weighted by uncertainty," it's a factor. > Read: Dellaert & Kaess (2017), *Factor Graphs for Robot Perception*. This is the book. [Now-Publishers PDF](https://www.cs.cmu.edu/~kaess/pub/Dellaert17fnt.pdf). *** ## Pose graph optimization - the simplest case Strip out landmarks entirely. Keep only poses connected by relative-pose measurements (odometry edges, loop-closure edges). That's pose graph optimization (PGO): $$ {\mathbf{x}*i}^\* = \arg\min*{{\mathbf{x}*i}} \sum*{(i,j) \in \mathcal{E}} | \log\left( \tilde{\mathbf{T}}\_{ij}^{-1} \mathbf{T}*i^{-1} \mathbf{T}*j \right)^\vee |*{\Sigma*{ij}}^2 $$ where $$\mathbf{T}*i \in SE(3)$$ is the $$i$$-th pose, $$\tilde{\mathbf{T}}*{ij}$$ is the measured relative transform, and $$\log(\cdot)^\vee$$ extracts the Lie-algebra vector from the residual transform. This is what every LiDAR SLAM back-end is doing once you strip the front-end away - taking scan-to-scan + loop-closure transforms and optimizing the trajectory. It's also what I built in [GO-SLAM](/robotics-handbook/authors-projects/go-slam.md): a custom LM solver over $$SE(3)$$ pose nodes with GICP edges from the front-end. *** ## Solving the nonlinear least squares Standard Gauss-Newton / Levenberg-Marquardt loop. Linearize at the current estimate, solve the linear system, update on the manifold, repeat. ### Linearization For a small perturbation $$\delta \mathbf{x}$$, each residual is approximated as: $$ r\_k(\mathbf{x} \boxplus \delta \mathbf{x}) \approx r\_k(\mathbf{x}) + \mathbf{J}\_k \delta \mathbf{x} $$ where $$\mathbf{J}\_k$$ is the Jacobian of $$r\_k$$ with respect to $$\delta \mathbf{x}$$ on the manifold (using the $$\boxplus$$ retraction). The total cost becomes quadratic: $$ F(\delta \mathbf{x}) = \sum\_k | r\_k + \mathbf{J}*k \delta \mathbf{x} |*{\Sigma\_k}^2 $$ ### The normal equations Setting $$\partial F / \partial \delta \mathbf{x} = 0$$ gives: $$ \mathbf{H} \delta \mathbf{x} = -\mathbf{b} $$ where $$ \mathbf{H} = \sum\_k \mathbf{J}\_k^\top \Sigma\_k^{-1} \mathbf{J}\_k, \quad \mathbf{b} = \sum\_k \mathbf{J}\_k^\top \Sigma\_k^{-1} r\_k $$ $$\mathbf{H}$$ is the **information matrix** (Gauss-Newton approximation of the Hessian). Levenberg-Marquardt adds a damping term $$\lambda \mathbf{I}$$ (or $$\lambda \text{diag}(\mathbf{H})$$): $$ (\mathbf{H} + \lambda \mathbf{I}) \delta \mathbf{x} = -\mathbf{b} $$ When $$\lambda$$ is large, you take a small gradient-descent step. When $$\lambda$$ is small, you take a Gauss-Newton step. The whole game is adjusting $$\lambda$$ each iteration based on whether the step reduced the cost. LM is robust where Gauss-Newton diverges. ### Why this is fast - sparsity Each factor touches only a few variables (a pose edge touches 2 poses; a landmark observation touches 1 pose + 1 landmark). So $$\mathbf{J}\_k$$ is mostly zero, and $$\mathbf{H}$$ - the sum of $$\mathbf{J}\_k^\top \mathbf{J}\_k$$ - has a **sparse block structure** mirroring the graph topology. > This is the punchline of graph SLAM: a Gaussian over the full posterior has a dense covariance matrix, but its inverse - the information matrix - is sparse. EKF-SLAM operates on the dense covariance ($$O(N^2)$$ entries). Graph SLAM operates on the sparse information matrix ($$O(N)$$ non-zeros). That's how you scale to $$10^5$$ poses. A sparse Cholesky decomposition of $$\mathbf{H}$$ (CHOLMOD, SuiteSparse) solves the linear system in roughly $$O(N^{1.5})$$ for 2D problems, scaling worse but still tractable for 3D. *** ## The Schur complement and marginalization Many SLAM problems have a special structure: lots of landmarks, fewer poses. If you split the variables into poses $$\mathbf{x}\_p$$ and landmarks $$\mathbf{x}\_l$$: $$ \begin{bmatrix} \mathbf{H}*{pp} & \mathbf{H}*{pl} \ \mathbf{H}*{pl}^\top & \mathbf{H}*{ll} \end{bmatrix} \begin{bmatrix} \delta \mathbf{x}\_p \ \delta \mathbf{x}\_l \end{bmatrix} = -\begin{bmatrix} \mathbf{b}\_p \ \mathbf{b}\_l \end{bmatrix} $$ The landmark block $$\mathbf{H}\_{ll}$$ is **block-diagonal** (each landmark is observed by some poses, but landmarks don't directly constrain each other). You can invert it cheaply - just invert each $$3\times 3$$ block. Substituting back yields the Schur-complement system for the poses alone: $$ (\mathbf{H}*{pp} - \mathbf{H}*{pl} \mathbf{H}*{ll}^{-1} \mathbf{H}*{pl}^\top) \delta \mathbf{x}*p = -(\mathbf{b}*p - \mathbf{H}*{pl} \mathbf{H}*{ll}^{-1} \mathbf{b}\_l) $$ Now you only solve over the (much smaller) pose space. Once you have $$\delta \mathbf{x}\_p$$, back-substitute to get $$\delta \mathbf{x}\_l$$. This is exactly what bundle adjustment does (Triggs et al. 2000) and what ORB-SLAM, COLMAP, and Ceres all use under the hood. **Marginalization** is the same operation viewed differently. To remove a variable from a graph while preserving the information it contributed, you compute the Schur complement against that variable. The result is a new, denser factor over the remaining variables (the "marginal prior"). This is how sliding-window VIO systems like OKVIS and VINS-Mono keep memory bounded - they marginalize old states out of the window and absorb their information into a prior. > **Field notes:** marginalization sounds clean. In practice, the *fill-in* it creates is a real cost - the marginal prior is a dense factor over everything connected to the marginalized variable. If you marginalize a pose that was observed from 10 keyframes, you now have a 10-way prior connecting all of them. That's why FEJ (First-Estimates Jacobian) tricks and careful keyframe selection matter so much in VIO. *** ## The big four: g2o, GTSAM, Ceres, iSAM2 | Library | Author / origin | Sweet spot | Math idiom | | --------- | ----------------------------------- | ------------------------------------------------------------------------------------------- | --------------------------------------- | | **g2o** | Kümmerle et al. (2011), Freiburg | Pose graphs, BA, classic SLAM back-ends | Hyper-graph; explicit vertex/edge types | | **GTSAM** | Dellaert, Georgia Tech | Factor graphs, VIO, smoothing-and-mapping (iSAM/iSAM2) | Factor graph; symbolic; Lie groups | | **Ceres** | Agarwal & Mierle, Google | General nonlinear LSQ; bundle adjustment at scale | Cost functions + parameter blocks | | **iSAM2** | Kaess et al. (2012); ships in GTSAM | Incremental smoothing - update solution as new factors arrive without re-solving everything | Bayes tree | ### g2o **General Graph Optimization.** Kümmerle, Grisetti, Strasdat, Konolige, Burgard (2011). [Paper](http://ais.informatik.uni-freiburg.de/publications/papers/kuemmerle11icra.pdf). Repo: [github.com/RainerKuemmerle/g2o](https://github.com/RainerKuemmerle/g2o). * Born as the back-end for many 2D / 3D SLAM systems (ORB-SLAM, ORB-SLAM2 used g2o; ORB-SLAM3 moved to a custom solver). * Plug-in linear solvers (CSparse, CHOLMOD, PCG, dense, Eigen). * You write vertex types (e.g., `VertexSE3`) and edge types (e.g., `EdgeSE3`) and the framework does the rest. * Lightweight. Good for pose graphs and BA. Less convenient if you want non-standard factor types. ### GTSAM Georgia Tech Smoothing and Mapping. Dellaert et al. Repo: [github.com/borglab/gtsam](https://github.com/borglab/gtsam). Project page: [gtsam.org](https://gtsam.org). * Factor graph as first-class API. Adding a factor is `graph.add(BetweenFactor(key1, key2, measured, noise))`. * Excellent Lie group support - poses live on $$SE(3)$$, rotations on $$SO(3)$$, etc., with proper retractions and Jacobians built in. * Includes **iSAM2** for incremental updates - when a new factor arrives, only the affected portion of the Bayes tree is re-solved. This is what makes GTSAM ideal for online SLAM. * IMU preintegration factor is built in. This is the reason LIO-SAM picked GTSAM. * Python bindings actually work (`pip install gtsam`). ### Ceres Google's general-purpose nonlinear LSQ library. Repo: [github.com/ceres-solver/ceres-solver](https://github.com/ceres-solver/ceres-solver). Docs: [ceres-solver.org](http://ceres-solver.org). * Not SLAM-specific. Designed for bundle adjustment at Google scale (Street View, photo tours). * You write **cost functors** with automatic differentiation (`AutoDiffCostFunction`) - no hand-derived Jacobians. This is enormous for prototyping. * Excellent at large-scale BA, structure-from-motion, calibration problems. VINS-Mono and VINS-Fusion both use Ceres. * No native Lie-group manifold types - you write a `LocalParameterization` (now `Manifold` in newer versions) for $$SO(3)$$ / $$SE(3)$$. Slightly annoying but well-documented. ### When each wins | Scenario | Reach for | | ------------------------------------------------ | ---------------------------------------------------- | | Pose graph optimization, ORB-SLAM-style back-end | g2o or GTSAM | | Tightly-coupled VIO with IMU preintegration | GTSAM (cleanest API) or Ceres (if you want autodiff) | | Bundle adjustment, SfM, calibration | Ceres | | Incremental online SLAM (smoothing as you go) | GTSAM iSAM2 | | You need to ship custom factor types fast | Ceres (autodiff saves days) | | You want to read existing reference code | Depends - pick the library your reference uses | > **Field notes:** I deliberately did *not* use any of these for [GO-SLAM](/robotics-handbook/authors-projects/go-slam.md). I rolled custom LM solvers for both the GICP alignment and the global pose-graph optimization. Why? Because the two-month deadline made debugging someone else's framework slower than writing the math myself, and because I wanted to understand the optimization end-to-end. In a production system I would use GTSAM. For learning, write your own LM solver once - you'll never look at these libraries the same way again. *** ## Loop closure - the part nobody emphasizes enough The pose-graph optimizer is the easy part. The hard part is: 1. **Detecting** that you've returned to a previously-visited place (place recognition). 2. **Verifying** the candidate match (geometric verification - RANSAC over feature matches, or scan-to-scan ICP with a tight inlier threshold). 3. **Adding** the loop-closure factor with a sensible covariance. 4. **Surviving** the moment when the optimizer pulls the entire trajectory through the new constraint.

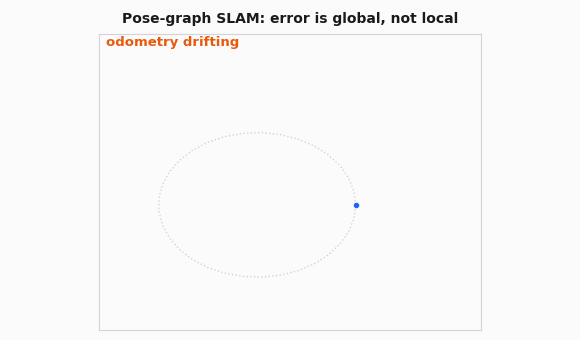

A drifted pose graph snapping into a consistent trajectory once a loop closure constraint is added and optimized
Approaches you'll see: | Approach | Used in | | ------------------------------- | --------------------------------- | | Bag-of-Words (DBoW2, DBoW3) | ORB-SLAM family | | NetVLAD / SuperGlue / LightGlue | Modern learned visual descriptors | | Scan Context (Kim & Kim 2018) | LIO-SAM, many LiDAR systems | | Scan Context++ (Kim & Kim 2021) | LIO-SAM derivatives | | BoW3D | LiDAR loop closure with 3D ORB | > **Field notes:** a wrong loop closure is worse than no loop closure. A false positive will warp your map permanently. Always pair the descriptor match with geometric verification, and put a robust kernel (Huber, Cauchy, DCS) on the loop-closure factor in the optimizer so a bad match has limited damage. ### Robust kernels The naive least-squares cost $$|r|^2$$ is quadratic - an outlier with residual 100 contributes 10,000 to the cost and dominates everything. Robust kernels replace $$|r|^2$$ with $$\rho(|r|)$$ where $$\rho$$ grows sub-quadratically. Common choices: * **Huber:** quadratic inside threshold, linear outside. The safe default. * **Cauchy:** $$\rho(r) = c^2 \log(1 + (r/c)^2)$$. More aggressive. * **DCS (Agarwal et al. 2013):** Dynamic Covariance Scaling. Scales the residual covariance based on the residual magnitude - effectively rejects outliers without hard thresholding. * **Switchable Constraints (Sünderhauf 2012):** add a switch variable per loop-closure edge; the optimizer can turn the edge off if it's inconsistent with the rest. Powerful but expensive. Ceres and g2o both have built-in robust kernels. GTSAM has them via `noiseModel::Robust`. *** ## SE-Sync, certifiable optimization, and other advanced topics Briefly, since this section is already long: * **SE-Sync (Rosen, Carlone, Bandeira, Leonard 2019)** - global, certifiably optimal pose graph optimization via semidefinite relaxation. When it converges, it returns a certificate that the solution is the global optimum. Used as a research benchmark for "did the optimizer find the right answer." [arxiv.org/abs/1611.00128](https://arxiv.org/abs/1611.00128). * **Square-root SAM (Dellaert & Kaess 2006)** - solve via QR factorization of the Jacobian instead of Cholesky of the information matrix. More numerically stable. * **Maximum-Mixture / GMM factors (Olson & Agarwal 2013)** - model multi-modal uncertainty in single factors. Useful when data association is ambiguous. Read these once you're comfortable with the basics. None of them changes the day-to-day workflow. *** ## What to actually use today | Task | Use | | ---------------------------------------------------- | -------------------------------------------------------------- | | Pose graph back-end for a LiDAR SLAM you're building | GTSAM if you want IMU preintegration; g2o for pure PGO | | Online incremental SLAM | GTSAM with iSAM2 | | Bundle adjustment / SfM / calibration | Ceres | | Visual SLAM you're consuming (not writing) | Whatever ORB-SLAM3 / VINS / OKVIS uses - read their code first | | Learning the math | Build your own LM solver over $$SE(3)$$. Once. | Continue to [visual-slam.md](/robotics-handbook/slam-and-state-estimation/visual-slam.md) and [lidar-slam.md](/robotics-handbook/slam-and-state-estimation/lidar-slam.md) to see how these back-ends get wired to actual sensor front-ends.
